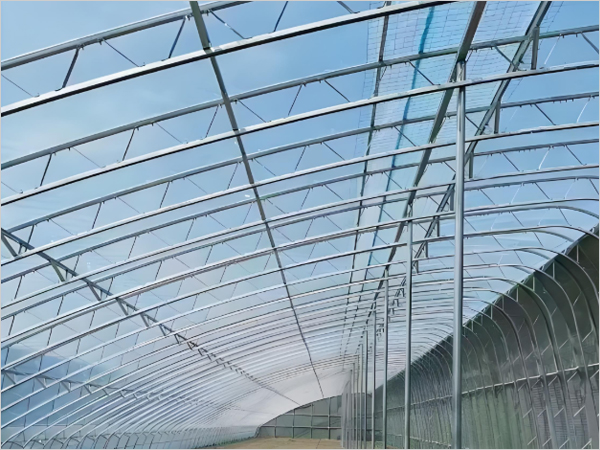

Double Arch Double Beam GreenhouseHigh Strength Hot-dip Galvanized Steel Is Used To Construct The Main And Auxiliary Double Beams And Double-layer Arch Structure, Forming A Dual Load-bearing Support System. The Structural Stability Is Improved By 40% Compared To Traditional Single Beam Greenhouses. Covering With Anti UV Drip Longevity Film, The Light Transmittance Reaches 88%, And An Air Insulation Layer Is Formed Through The Double Arch Gap. The Insulation Performance In Winter Is 35% Better Than That Of Conventional Greenhouses.
The Span Of A Single Shed Is 10 Meters, The Column Spacing Is 5 Meters, The Ridge Height Is 4 Meters, And The Length Of The Connected Buildings Can Be Customized. The Overall Wind Resistance Level Reaches 12, And The Snow Load Resistance Is 0.7kN/m2. The Roof Of The Shed Is Equipped With An Electric Roll Film Ventilation System, And The Side Walls Are Equipped With Sliding Ventilation Windows To Achieve Full Area Air Circulation.
Internally Equipped With Distributed Environmental Monitoring Sensors, Real-time Capture Of Temperature, Humidity, Lighting And Other Data; Intelligent Temperature Control System Linked With Hot Air Blower And Wet Curtain Cooling Equipment; Partition Based Integrated Drip Irrigation For Precise Supply Of Water And Fertilizer; The Internal And External Shading System Can Flexibly Adjust The Lighting. The Ground Is Hardened With High-grade Cement, Scientifically Divided Into Functional Areas, And Equipped With An IoT Central Control Platform To Achieve Remote Intelligent Control, Providing Solid Hardware Support For Large-scale Planting.
